内径434.30mm～内径1199.5mmの規格Oリングを昇順に並べたリストです。
JIS B 2401,AN6227(旧JIS W1516),AN6230(旧JIS W1517),旧JASO,ISO,
AS568(旧ARP)等の規格Oリング
ゴムOリングは金属製品や樹脂製品に比較して寸法公差は大きくとられます。
材質によって、あるいは規格によっては金型が無い場合もあります。
Oリングの規格/種類、材質は → 規格・種類 | 材質・材料
前のサイズ表(5/6)

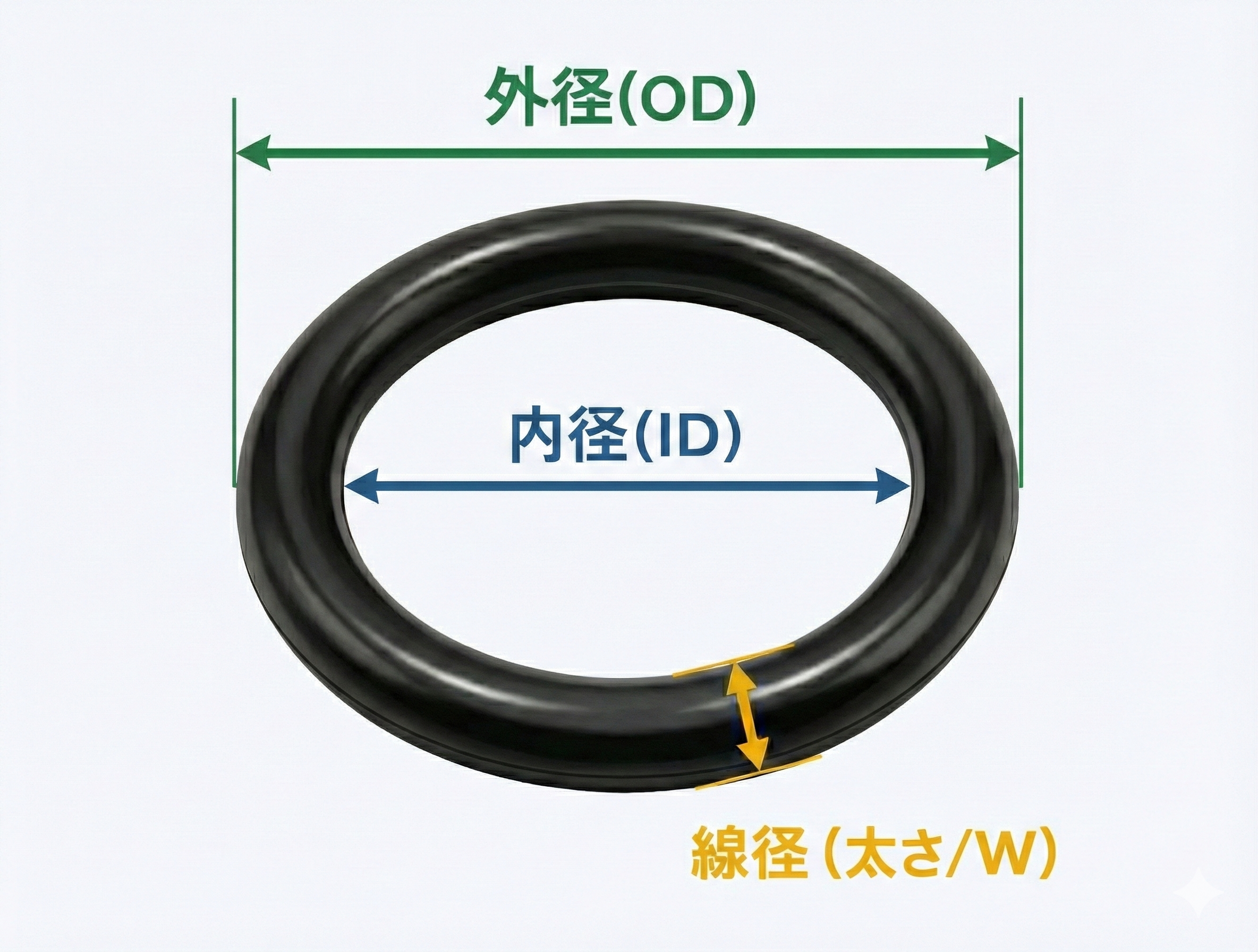

| 規格・番号 | Ｏリング寸法 | 規格・番号 | Ｏリング寸法 | 規格・番号 | Ｏリング寸法 | |||
|---|---|---|---|---|---|---|---|---|
| 内径mm | 線径mm | 内径mm | 線径mm | 内径mm | 線径mm | |||
| GS-435 | 434.30 | 3.10 | P-540 | 539.50 | 8.40 | V-760 | 752.00 | 10.00 |
| G-435 | 434.30 | 5.70 | V-550 | 544.00 | 10.00 | G-760 | 759.30 | 5.70 |
| P-435 | 434.50 | 8.40 | G-545 | 544.30 | 5.70 | P-760 | 759.50 | 8.40 |
| V-440 | 435.50 | 6.00 | P-545 | 544.50 | 8.40 | V-770 | 762.00 | 10.00 |
| I-E4370G | 437.00 | 7.00 | I-E5450G | 545.00 | 7.00 | G-770 | 769.30 | 5.70 |
| GS-440 | 439.30 | 3.10 | G-550 | 549.30 | 5.70 | P-770 | 769.50 | 8.40 |
| G-440 | 439.30 | 5.70 | P-550 | 549.50 | 8.40 | V-780 | 772.00 | 10.00 |
| P-440 | 439.50 | 8.40 | I-E5530G | 553.00 | 7.00 | G-780 | 779.30 | 5.70 |
| V-445 | 440.50 | 6.00 | V-560 | 554.00 | 10.00 | P-780 | 779.50 | 8.40 |
| I-E4430G | 443.00 | 7.00 | G-555 | 554.30 | 5.70 | V-790 | 782.00 | 10.00 |
| AS-464 | 443.36 | 6.98 | P-555 | 554.50 | 8.40 | G-790 | 789.30 | 5.70 |
| GS-445 | 444.30 | 3.10 | AS-391 | 557.66 | 5.33 | P-790 | 789.50 | 8.40 |
| G-445 | 444.30 | 5.70 | AS-471 | 557.66 | 6.98 | V-800 | 791.50 | 10.00 |
| P-445 | 444.50 | 8.40 | G-560 | 559.30 | 5.70 | G-800 | 799.30 | 5.70 |
| V-450 | 445.50 | 6.00 | P-560 | 559.50 | 8.40 | P-800 | 799.50 | 8.40 |
| GS-450 | 449.30 | 3.10 | I-E5600G | 560.00 | 7.00 | V-810 | 801.50 | 10.00 |
| G-450 | 449.30 | 5.70 | V-570 | 564.00 | 10.00 | G-810 | 809.30 | 5.70 |
| P-450 | 449.50 | 8.40 | G-565 | 564.30 | 5.70 | P-810 | 809.50 | 8.40 |
| I-E4500G | 450.00 | 7.00 | P-565 | 564.50 | 8.40 | V-820 | 811.50 | 10.00 |
| V-455 | 450.50 | 6.00 | G-570 | 569.30 | 5.70 | G-820 | 819.30 | 5.70 |
| GS-455 | 454.30 | 3.10 | P-570 | 569.50 | 8.40 | P-820 | 819.50 | 8.40 |
| G-455 | 454.30 | 5.70 | I-E5700G | 570.00 | 7.00 | V-830 | 821.50 | 10.00 |
| P-455 | 454.50 | 8.40 | V-580 | 574.00 | 10.00 | G-830 | 829.30 | 5.70 |
| V-460 | 455.50 | 6.00 | G-575 | 574.30 | 5.70 | P-830 | 829.50 | 8.40 |
| I-E4560G | 456.00 | 7.00 | P-575 | 574.50 | 8.40 | V-840 | 831.50 | 10.00 |
| AS-284 | 456.06 | 3.53 | V-585 | 579.00 | 10.00 | V-845 | 836.50 | 10.00 |
| AS-387 | 456.06 | 5.33 | G-580 | 579.30 | 5.70 | G-840 | 839.30 | 5.70 |
| AS-465 | 456.06 | 6.98 | P-580 | 579.50 | 8.40 | P-840 | 839.50 | 8.40 |
| GS-460 | 459.30 | 3.10 | I-E5800G | 580.00 | 7.00 | V-850 | 841.50 | 10.00 |
| G-460 | 459.30 | 5.70 | AS-392 | 582.68 | 5.33 | G-850 | 849.30 | 5.70 |
| P-460 | 459.50 | 8.40 | AS-472 | 582.68 | 6.98 | P-850 | 849.50 | 8.40 |
| V-465 | 460.50 | 6.00 | V-590 | 584.00 | 10.00 | V-860 | 851.50 | 10.00 |
| I-E4620G | 462.00 | 7.00 | G-585 | 584.30 | 5.70 | G-860 | 859.30 | 5.70 |
| GS-465 | 464.30 | 3.10 | P-585 | 584.50 | 8.40 | P-860 | 859.50 | 8.40 |
| G-465 | 464.30 | 5.70 | G-590 | 589.30 | 5.70 | V-870 | 861.50 | 10.00 |
| P-465 | 464.50 | 8.40 | P-590 | 589.50 | 8.40 | G-870 | 869.30 | 5.70 |
| V-470 | 465.50 | 6.00 | I-E5900G | 590.00 | 7.00 | P-870 | 869.50 | 8.40 |
| I-E4660G | 466.00 | 7.00 | V-600 | 593.50 | 10.00 | V-880 | 871.50 | 10.00 |
| AS-466 | 468.76 | 6.98 | G-595 | 594.30 | 5.70 | G-880 | 879.30 | 5.70 |
| GS-470 | 469.30 | 3.10 | P-595 | 594.50 | 8.40 | P-880 | 879.50 | 8.40 |
| G-470 | 469.30 | 5.70 | G-600 | 599.30 | 5.70 | V-890 | 881.50 | 10.00 |
| P-470 | 469.50 | 8.40 | P-600 | 599.50 | 8.40 | G-890 | 889.30 | 5.70 |
| I-E4700G | 470.00 | 7.00 | I-E6000G | 600.00 | 7.00 | P-890 | 889.50 | 8.40 |
| V-475 | 470.50 | 6.00 | V-610 | 603.50 | 10.00 | V-900 | 891.00 | 10.00 |
| GS-475 | 474.30 | 3.10 | I-E6080G | 608.00 | 7.00 | G-900 | 899.30 | 5.70 |
| G-475 | 474.30 | 5.70 | AS-393 | 608.08 | 5.33 | P-900 | 899.50 | 8.40 |
| P-475 | 474.50 | 8.40 | AS-473 | 608.08 | 6.98 | V-910 | 901.00 | 10.00 |
| I-E4750G | 475.00 | 7.00 | G-610 | 609.30 | 5.70 | G-910 | 909.30 | 5.70 |
| V-480 | 475.00 | 10.00 | P-610 | 609.50 | 8.40 | P-910 | 909.50 | 8.40 |
| I-E4790G | 479.00 | 7.00 | V-620 | 613.50 | 10.00 | V-920 | 911.00 | 10.00 |
| GS-480 | 479.30 | 3.10 | I-E6150G | 615.00 | 7.00 | G-920 | 919.30 | 5.70 |
| G-480 | 479.30 | 5.70 | G-620 | 619.30 | 5.70 | P-920 | 919.50 | 8.40 |
| P-480 | 479.50 | 8.40 | P-620 | 619.50 | 8.40 | V-930 | 921.00 | 10.00 |
| AS-388 | 481.46 | 5.33 | I-E6230G | 623.00 | 7.00 | G-930 | 929.30 | 5.70 |
| AS-467 | 481.46 | 6.98 | V-630 | 623.50 | 10.00 | P-930 | 929.50 | 8.40 |
| I-E4830G | 483.00 | 7.00 | G-630 | 629.30 | 5.70 | V-940 | 931.00 | 10.00 |
| GS-485 | 484.30 | 3.10 | P-630 | 629.50 | 8.40 | G-940 | 939.30 | 5.70 |
| G-485 | 484.30 | 5.70 | I-E6300G | 630.00 | 7.00 | P-940 | 939.50 | 8.40 |
| P-485 | 484.50 | 8.40 | AS-394 | 633.48 | 5.33 | V-950 | 940.50 | 10.00 |
| V-490 | 485.00 | 10.00 | AS-474 | 633.48 | 6.98 | G-950 | 949.30 | 5.70 |
| I-E4870G | 487.00 | 7.00 | V-640 | 633.50 | 10.00 | P-950 | 949.50 | 8.40 |
| GS-490 | 489.30 | 3.10 | G-640 | 639.30 | 5.70 | V-960 | 950.50 | 10.00 |
| G-490 | 489.30 | 5.70 | P-640 | 639.50 | 8.40 | G-960 | 959.30 | 5.70 |
| P-490 | 489.50 | 8.40 | I-E6400G | 640.00 | 7.00 | P-960 | 959.50 | 8.40 |
| I-E4930G | 493.00 | 7.00 | V-650 | 643.00 | 10.00 | V-970 | 960.50 | 10.00 |
| AS-468 | 494.16 | 6.98 | G-650 | 649.30 | 5.70 | G-970 | 969.30 | 5.70 |
| GS-495 | 494.30 | 3.10 | P-650 | 649.50 | 8.40 | P-970 | 969.50 | 8.40 |
| G-495 | 494.30 | 5.70 | I-E6500G | 650.00 | 7.00 | V-980 | 970.50 | 10.00 |
| P-495 | 494.50 | 8.40 | V-660 | 653.00 | 10.00 | G-980 | 979.30 | 5.70 |
| V-500 | 494.50 | 10.00 | AS-395 | 658.88 | 5.33 | P-980 | 979.50 | 8.40 |
| GS-500 | 499.30 | 3.10 | AS-475 | 658.88 | 6.98 | V-990 | 980.50 | 10.00 |
| G-500 | 499.30 | 5.70 | G-660 | 659.30 | 5.70 | G-990 | 989.30 | 5.70 |
| P-500 | 499.50 | 8.40 | P-660 | 659.50 | 8.40 | P-990 | 989.50 | 8.40 |
| I-E5000G | 500.00 | 7.00 | I-E6600G | 660.00 | 7.00 | V-1000 | 990.50 | 10.00 |
| G-505 | 504.30 | 5.70 | V-670 | 663.00 | 10.00 | G-1000 | 999.30 | 5.70 |
| P-505 | 504.50 | 8.40 | G-670 | 669.30 | 5.70 | P-1000 | 999.50 | 8.40 |
| V-510 | 504.50 | 10.00 | P-670 | 669.50 | 8.40 | V-1010 | 1000.00 | 10.00 |
| AS-389 | 506.86 | 5.33 | I-E6700G | 670.00 | 7.00 | V-1020 | 1010.00 | 10.00 |
| AS-469 | 506.86 | 6.98 | V-680 | 673.00 | 10.00 | G-1020 | 1019.30 | 5.70 |
| I-E5080G | 508.00 | 7.00 | G-680 | 679.30 | 5.70 | P-1020 | 1019.50 | 8.40 |
| G-510 | 509.30 | 5.70 | P-680 | 679.50 | 8.40 | V-1030 | 1020.00 | 10.00 |
| P-510 | 509.50 | 8.40 | V-690 | 683.00 | 10.00 | V-1040 | 1030.00 | 10.00 |
| G-515 | 514.30 | 5.70 | G-690 | 689.30 | 5.70 | P-1040 | 1038.50 | 8.40 |
| P-515 | 514.50 | 8.40 | P-690 | 689.50 | 8.40 | V-1050 | 1039.00 | 10.00 |
| V-520 | 514.50 | 10.00 | V-700 | 692.50 | 10.00 | G-1040 | 1039.30 | 5.70 |
| I-E5150G | 515.00 | 7.00 | G-700 | 699.30 | 5.70 | V-1055 | 1044.00 | 10.00 |
| G-520 | 519.30 | 5.70 | P-700 | 699.50 | 8.40 | G-1060 | 1059.30 | 5.70 |
| P-520 | 519.50 | 8.40 | V-710 | 702.50 | 10.00 | P-1060 | 1059.50 | 8.40 |
| I-E5230G | 523.00 | 7.00 | G-710 | 709.30 | 5.70 | G-1080 | 1079.30 | 5.70 |
| G-525 | 524.30 | 5.70 | P-710 | 709.50 | 8.40 | P-1080 | 1079.50 | 8.40 |
| P-525 | 524.50 | 8.40 | V-720 | 712.50 | 10.00 | G-1100 | 1099.30 | 5.70 |
| V-530 | 524.50 | 10.00 | G-720 | 719.30 | 5.70 | P-1100 | 1099.50 | 8.40 |
| G-530 | 529.30 | 5.70 | P-720 | 719.50 | 8.40 | G-1120 | 1119.30 | 5.70 |
| P-530 | 529.50 | 8.40 | V-730 | 722.50 | 10.00 | P-1120 | 1119.50 | 8.40 |
| I-E5300G | 530.00 | 7.00 | G-730 | 729.30 | 5.70 | G-1140 | 1139.30 | 5.70 |
| AS-390 | 532.26 | 5.33 | P-730 | 729.50 | 8.40 | P-1140 | 1139.50 | 8.40 |
| AS-470 | 532.46 | 6.98 | V-740 | 732.50 | 10.00 | G-1160 | 1159.30 | 5.70 |
| V-540 | 534.00 | 10.00 | G-740 | 739.30 | 5.70 | P-1160 | 1159.50 | 8.40 |
| G-535 | 534.30 | 5.70 | P-740 | 739.50 | 8.40 | G-1180 | 1179.30 | 5.70 |
| P-535 | 534.50 | 8.40 | V-750 | 742.00 | 10.00 | P-1180 | 1179.50 | 8.40 |
| I-E5380G | 538.00 | 7.00 | G-750 | 749.30 | 5.70 | G-1200 | 1199.30 | 5.70 |
| G-540 | 539.30 | 5.70 | P-750 | 749.50 | 8.40 | P-1200 | 1199.50 | 8.40 |
